Funke VPS Turbo DN/OD 160

Easy lateral connection of house sewer pipes to main sewer pipes

The lateral connection of house connection pipes to main pipes is a key aspect of modern drainage systems. With the Funke VPS Turbo DN/OD 160, this task can be carried out easily, precisely and reliably – even retrospectively and without major effort on the construction site.

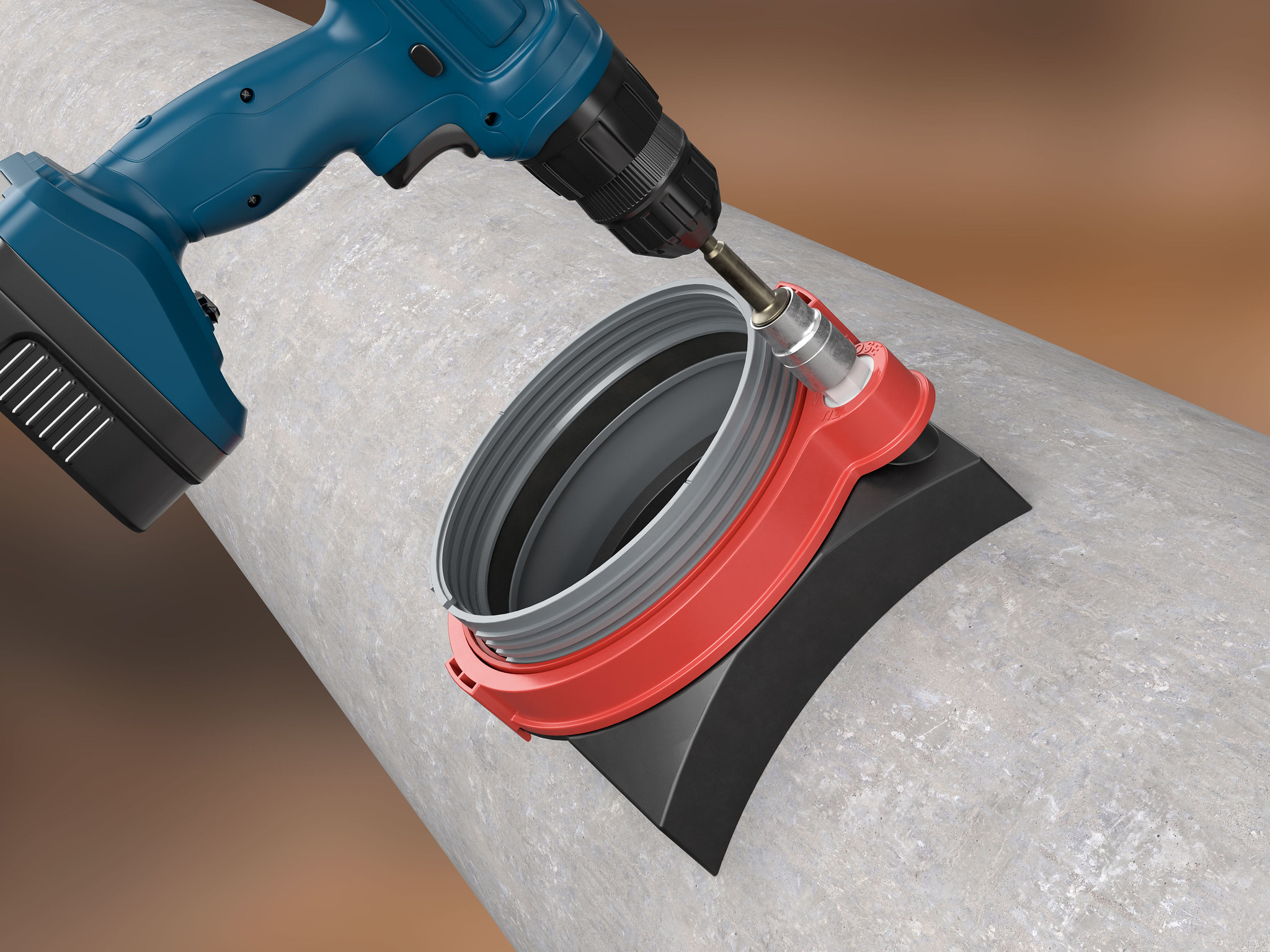

Installation is particularly convenient: it can be carried out without special tools and can be done directly with a cordless drill (SW19). When the correct tightening torque is reached, the specially developed shear bolt breaks off automatically, ensuring the optimum contact pressure of the seal. This saves valuable time and immediately ensures a tight, secure result.

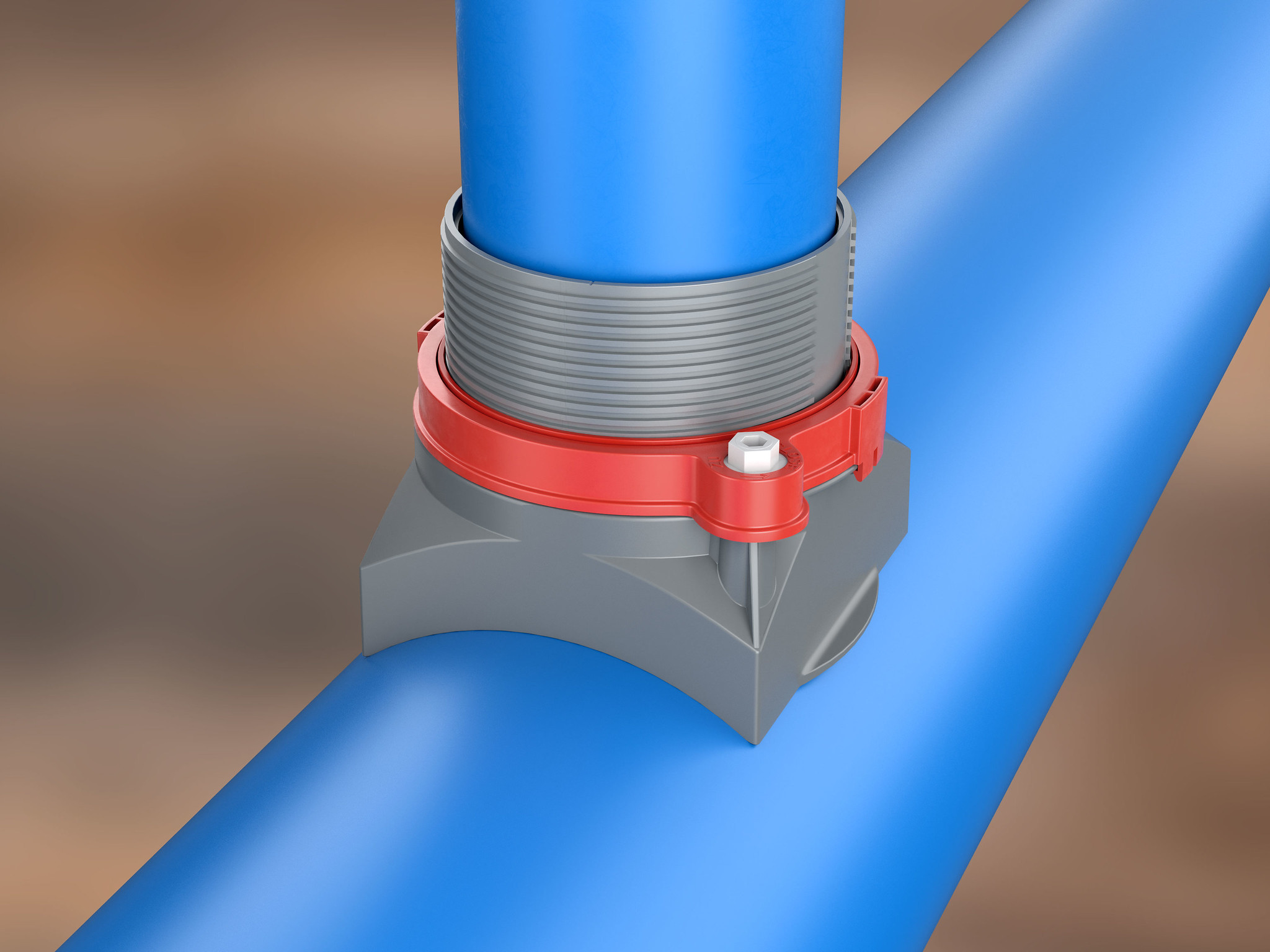

The VPS Turbo DN/OD 160 is suitable for sewer pipes with DN/OD 300 to 2400 mm; a core hole of 187 to 189 mm is sufficient for installation. This means that the connection can be used effortlessly with a wide variety of pipe materials – from thick-walled concrete to thin-walled plastic.

Its intelligent sealing collar adapts continuously to the inner contour of the drill hole edge. The specially designed seal underneath is compressed evenly and forms a form-fitting and force-fitting connection – for a permanently tight, stable and durable solution.

The advantages at a glance:

• Installation without special tools
• Tightening with a cordless drill with SW19 chuck
• When the tightening torque is reached, the specially developed shear bolt breaks off automatically
• The contact pressure of the seal is ensured
• Stepless adjustment of the radius for main pipes DN 300 – 2400, regardless of the wall thickness of the main pipes
• Suitable for wall thicknesses from 7 mm to almost any wall thickness
• The connection pipe of the sleeve can be angled steplessly from 0° to 7
• Core bore size: 187 – 189 mm
• Compact design
• Versatile application options
• Tested and certified according to DIN 4060: resilient, tight and shear load resistant
